Sinotruk Howo 6x4 336HP Asphalt Distributor Truck For Road Construction

Brand Name : CLW

Model Number : CLW5096CEG

Certification : CCC,ISO,BV,SGS

Place of Origin : Suizhou, China

MOQ : 1 Unit

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 500 Unit/Month

Delivery Time : 30-35 Working Days

Packaging Details : Naked packing,Ro-ro,Bulk Ship

Chassis Brand : Dongfeng, Foton, Sinotruk HOWO, Isuzu, etc.

Engine Power : 336HP

Tank Capacity : 20cbm, 22cbm, 24cbm, 25cbm, 26cbm, etc.

Paving Width : 4500-6000mm

Bitumen Capacity : 0.25-3.5L//M2

Asphalt Pump : Chinese Brand /Optional International Brand

Hydraulic Motor : Chinese Brand /Optional International Brand

Nozzle Number : 48PCS

Control Mode : Operation Box Control

Burner : Italy Brand

Logo and Color : as Per Customer's Requests

Warranty : 1 Year

Contact Now

**Sinotruk HOWO 6*4 336HP Road Construction Asphalt Distributor Truck**

Product Description

1. Can spread a variety of asphalt: high viscosity modified asphalt, hot asphalt, emulsified asphalt, etc.
2. The width of the sprinkler is freely adjustable and each nozzle can be individually controlled.
3. Excellent insulation performance, average temperature drop ≤20°C/8h.
4. Intelligent control system for precise control of the amount of spreading. Manual and automatic two sets of operating systems, complete the sprinkling in the cab, the construction can be completed by one person only.

Product Specification

Drive Model	Left or right driven hand, 6x4
Cabin	HOWO HW76 Cabin, with one sleeper, air conditioner
Engine	Engine Model	WD615.47
	Type	diesel engine, 4-stroke, 6-cylinder in line, inter-cooling and turbo-charging, euro-2 emission standard
	Power	HP	336
	Displacement	L	9.726
Dimensions	Overall LxWxH	mm	10200x2500x3450
	Wheel Base	mm	4600+1350
	Front/Rear Axles	kg	7000/18000
Gearbox	HW19710, 10forward & 2 reverse gear, manually
Steering	ZF Hydraulic steering with power assistance
Fuel Tank	300L
Clutch	Reinforced diaphragm clutch, diameter 430mm
Brakes	Service brake: dual circuit compressed air brake Parking brake(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust brake
Tyre	11.00-20,11.00R20 16PR,12.00-20 16PR,12.00R20 14PR,315/80R22.5 16PR,12R22.5 16PR,295/80R22.5 16PR
Tank
Volume	20cbm
Asphalt Pump Model	QGB950 (950 liters / min)
Pump Model	CBQ563-L
Generator power	6 kilowatts
Sprinkle speed	0.2 to 3 liters / square meter
Sprinkle width	6 m
Hydraulic motor Model	05-110-BD31
Other specification	Asphalt nozzle 48; Conducting oil heating; Oil pump made in China; Italy imported G20 Burner.

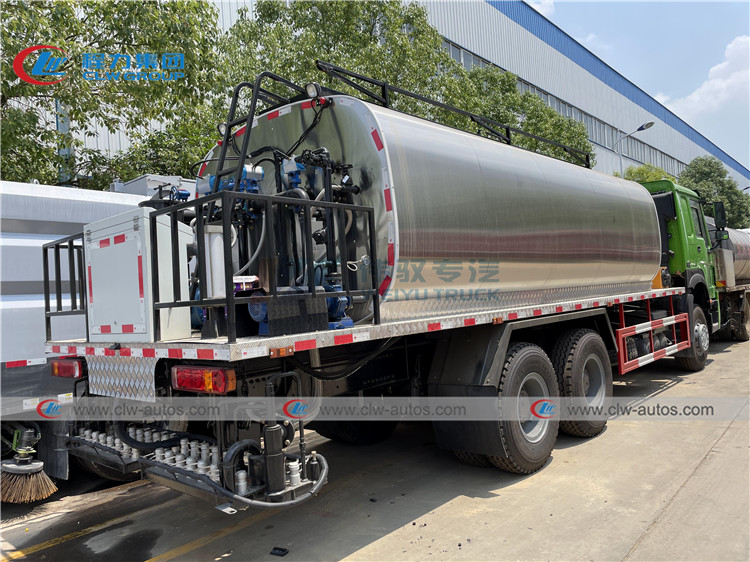

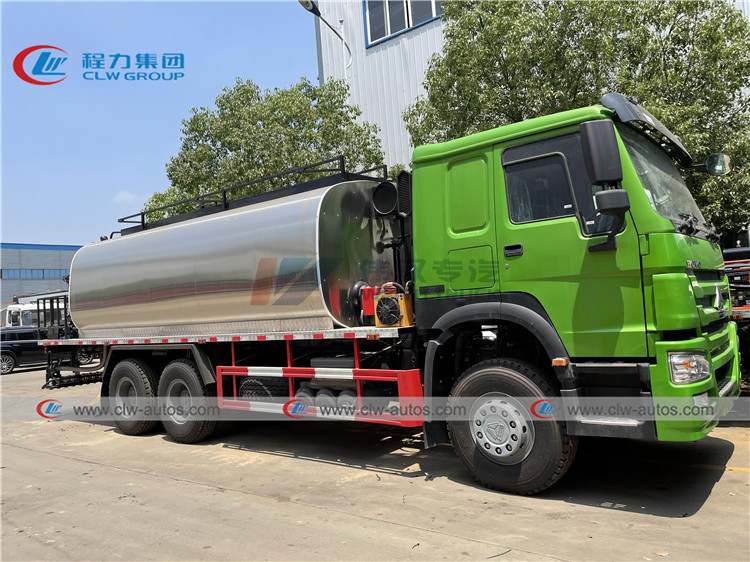

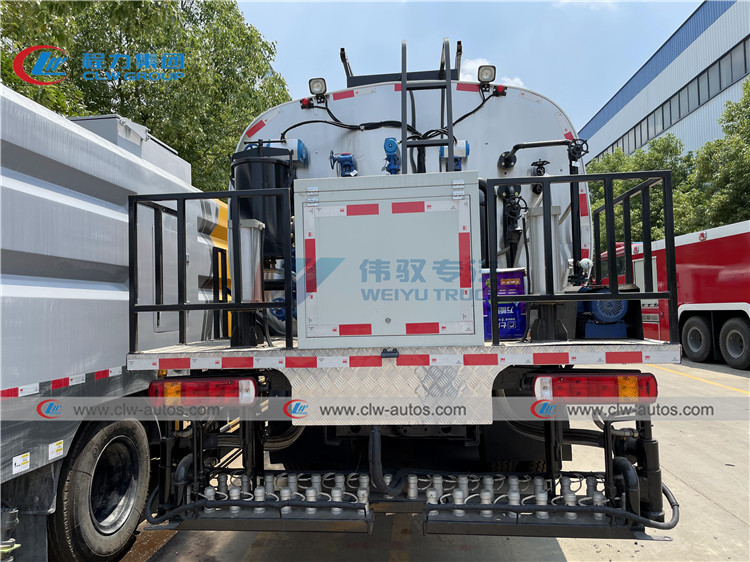

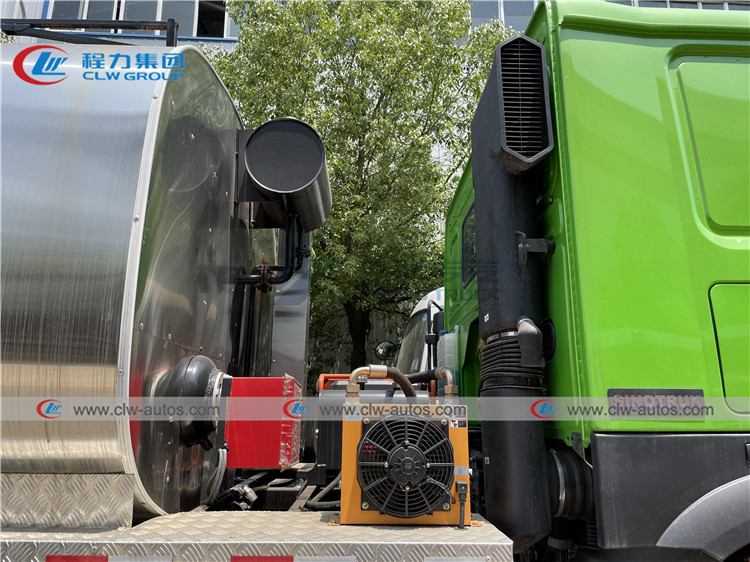

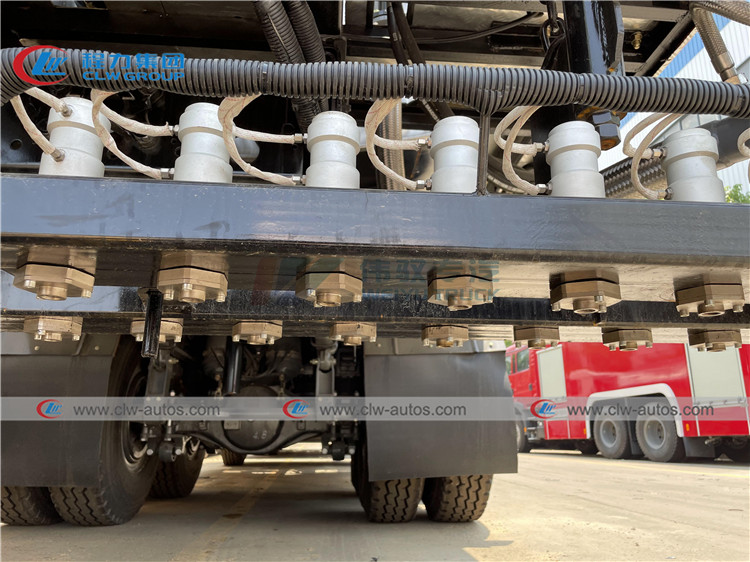

Reference Photos

Sinotruk Howo 6x4 336HP Asphalt Distributor Truck For Road Construction

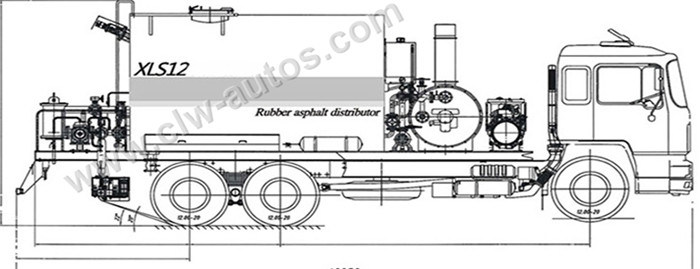

Structure and Diagram

Sinotruk Howo 6x4 336HP Asphalt Distributor Truck For Road Construction

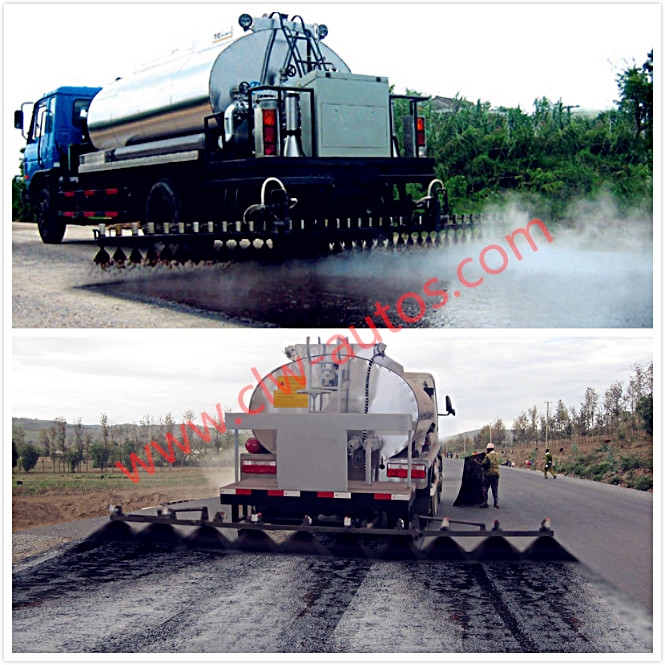

Working Scene

Sinotruk Howo 6x4 336HP Asphalt Distributor Truck For Road Construction

After-sales Service

1. Provide English operation manual and Instruction videos.
2. One year free warranty for major 3 components: engine, gearbox, axles; One set of easily worn spare parts of truck chassis for free; Spare parts supplied at factory price whenever needed.
3. Aftersales service whenever needed. Our engineers will go to customer's country to assist the installation and operation if order QTY.is more than 10 units. Contact Lea for more details+86 155 2791 1810.

FAQ

Q1: What kinds of bitumen distribution truck I can order from your company?

A: We can supply various sizes of asphalt sprayer Truck such as 2ton,3ton,4ton,5ton,6ton to 25ton, if you need larger size, there are 2 axles and 3 axles semil trailer for optional.

Q2: What is your production standard of bitumen distribution truck ? Whether your 10Tons Bitumen Distributor Truck or trailers export to USA, Canada and Europen countries?

A: Our bitumen distribution truck is produced as per China GB local standard; We can export super structure to those market, we ever exported 10Tons Bitumen Distributor Truck super structure to Europen countries before.

Q3: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
