Foton High Pressure Vacuum sludge suction truck 10M3 12M3

Brand Name : CLW

Model Number : CLW5087GYK

Certification : CCC,ISO,BV,SGS

Place of Origin : Suizhou, China

MOQ : 1 Unit

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 500 Units/Month

Delivery Time : 30-35 Working Days

Packaging Details : Naked packing, Ro-ro, Bulk Ship

Chassis Brand : Dongfeng, Foton, Sinotruk HOWO, Isuzu, etc.

Drive Model : Right Hand Drive & Left Hand Drive

Wheelbase : 3800 mm

Engine Power : 170HP

Tank Size : 15cbm, 16cbm, 18cbm, 20cbm, 22cbm, 24cbm, etc.

Tank Material : 6mm Carbon Steel

Vacuum Pump : Chinese Brand, or famous international brand

Sewage Suction Pipe : 8m

Suction Time : <5min

Effective Suction Range : >8m

Logo and Pattern : as Customer's Request

Warranty : 1 Year

Contact Now

10-12tons High Pressure Fecal Sludge Suction Tanker 10m3 12cbm Sewer Dredge Vehicle Sewage Vacuum Jetting Tank Truck

Product Description
Truck Chassis Advantage:
- High Quality Chassis Series-FOTON Aumark;
- Good Quality Yuchai or Cummins Engine in 180HP ~220HP;
- FAST Gearbox Suppling large powe Output in Big Speed Ratio;
- High Speed Gear with Low Fuel Consumption.

Sewage System Advantage:
- Large volume sewage tank 8000L with High Pressure Design;
- 4000L Wate with Side Installed Design Low Gravity Center;
- Famous Italian Jurop &BP, American Moro Vacuum Pump in 2400L/Min;
- High Pressure Chinese Brand Water Pump 300L/min, 18Bar Pressure;
- Hydraulic Arm for easier sewage hose handling;
- Remote control system.

Product Specification

Chassis parameters
Condition	New condition /4x2, right hand driving or left hand driving
Main details	Brand		Foton
	Curb weight(kg)		8900 kg
	Wheelbase(mm)		4800 mm
	Dimensions(mm)		912025003550mm
	Approach/Departure angle(°)		20/17 °
	Max. driving speed(km/h)		95 km/h
	Clutch		Reinforced diaphragm clutch
	Brakes		Air brakes
	Steering Gear		Power steering, hydraulic steering with power assistance
	Tire	Quantity	6 pcs with one spare tire
		Specifications	11R22.5
Transmission	Manual type, FAST Brand, 8 Forwards and 1 reverse
Cabin	FOTON AUMARK Model, with Air Condition, for 2~3 persons
Engine	Brand		Cummins Engine
	Horsepower(HP)		210 HP
	Fuel type		Diesel
	Displacement(ml)		6500 ml
	Emission standard		Euro 2 or Euro 3
Power Supply	PTO,one is for high pressure water pump and another is for spare
Sewage Suction & Cleaning System
Water tank	Capacity(cbm)		4.0cbm/4,000 liters
	Tank material		Q235 carbon steel
	Thickness		≥5
	Safety protection device		1-High water level; 2-Low water level 3-No water
Sewage tank	Capacity(cbm/liters)		8.0cbm/8,000 liters
	Tank material		Q235 carbon steel
	Thickness(mm)		≥5
	Opening of Rear Cover		100% open by hydraulic control
	Working pressure		93% Vacuum
	Sewer Discharging outlet(mm)		100~150
	Tank is front tipping under function of oil cylinder
Sewage pump	Brand		Italian Brand Jurop
	Max. Working Speed(r/min)		3300
	Max vacuum		93%
	Rate flow rate		2400 L/min
High pressure water pump	Brand		China famous brand
	Type		Triple plunger pump
	Max. Pressure(Bar/Mpa)		≥180/18.0
	Rate speed(rpm)		1500
	Rate flow(L/min)		300
High pressure Winch	Length of High pressure hose(m)		≥60
	Diameters of High pressure hose(mm)		≥19
Water nozzle	10 different size water nozzle for cleaning sand,sludge and dirt
Lamp	1- Revolving Warning Light on top 2- Upper Arrow Warning light at truck rear 3- Signal light at truck rear
Main parts	1. Hydraulic controlled suction hose 2. Water-gas separator; 3. Oil-gas separator 4. Four way valve; 5. Safety valve 6. Anti overflow valve 7. Anti overflow warning device 8. Hydraulic control rear cover; 8. Tipping sewage tank body
Remarks	The color is optional

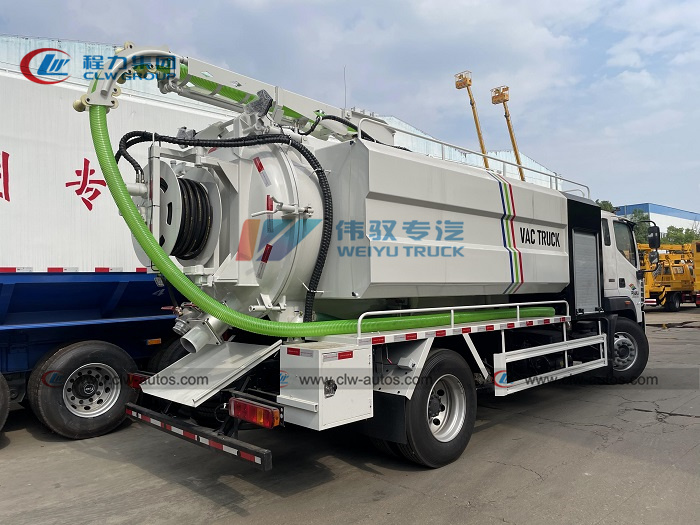

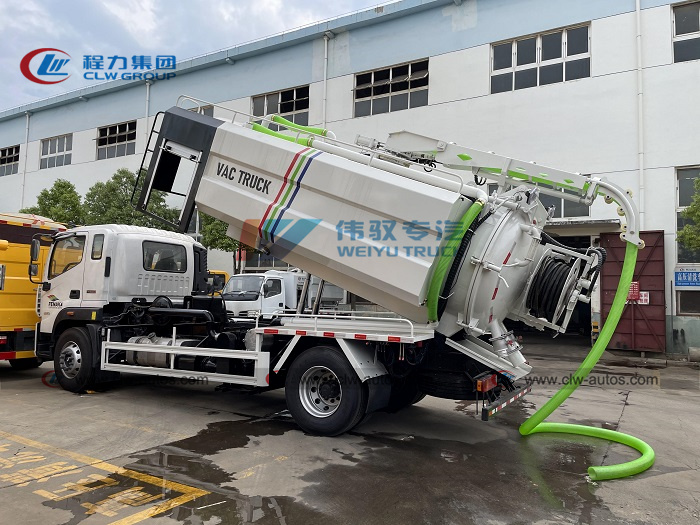

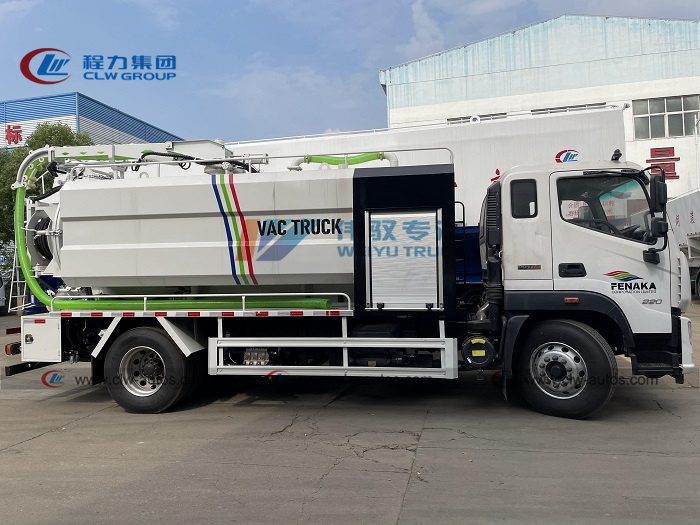

Reference Photos
Foton High Pressure Vacuum sludge suction truck 10M3 12M3

Foton High Pressure Vacuum sludge suction truck 10M3 12M3

We provide package solution and customized drawding for every sewage vacuum suction truck

Working Scene
Foton High Pressure Vacuum sludge suction truck 10M3 12M3

After-sales Service

1. Provide English operation manual and Instruction videos.
2. One year free warranty for major 3 components: engine, gearbox, axles; One set of easily worn spare parts of truck chassis for free; Spare parts supplied at factory price whenever needed.
3. Aftersales service whenever needed. Our engineers will go to customer's country to assist the installation and operation if order QTY.is more than 10 units. Contact Lea For More Details: +86 155 2791 1810.

FAQ

Q1: What size sewage suction tank we can get from your company?

A: we can supply 5CBM to 35CBM sewer cleaning truck as per our customer's request. Pls contact with us for more technical details discussion.

Q2: Have you supplied sewage suction truck to any overseas companies?
A: Yes, we have supplied fire trucks to African, south-east Asian, south-American and other more than 80 countries and regions.

Q3: Can we adopts International brand parts or accessories for fire truck?
A: Sure, we already cooperated with many international brand suppliers.

Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
