Sinotruk HOWO 6x4 15cbm 16cbm 18cbm 20cbm Vacuum Sewage Suction Truck

Brand Name : CLW

Model Number : CLW5087GYK

Certification : CCC,ISO,BV,SGS

Place of Origin : Suizhou, China

MOQ : 1 Unit

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 500 Units/Month

Delivery Time : 30-35 Working Days

Packaging Details : Naked packing, Ro-ro, Bulk Ship

Chassis Brand : Dongfeng, Foton, Sinotruk HOWO, Isuzu, etc.

Drive Model : Right Hand Drive & Left Hand Drive

Fuel Type : Diesel Engine

Engine Power : 245HP

Gearbox : 10 Forwards & 2 Reverse

Tank Material : 5mm Carbon Steel

Tank Size : 15cbm, 16cbm, 18cbm, 20cbm, 22cbm, 24cbm, etc.

Vacuum Pump : Chinese Brand, Italy Brand or Other Popular Brand

Sewage Suction Pipe : 5mm ~ 8mm

Suction Time : <5min

Effective Suction Range : >8m

Logo and Pattern : as Customer's Request

Warranty : 1 Year

Contact Now

**Sinotruk HOWO 6*4 15cbm16cbm18cbm20cbm Sewage Vacuum Suction Truck**

Product Description
1. Chassis:
1) Drive type: 4x2, 4x4, 6x4, 8x4 etc.
2) Our factory has good business relationship with DONGFENG, FOTON, ISUZU, FAW, SINOTRUCK, SHACMAN, JAC, JMC, etc.
2. Tanker body:From 2m3 to 25 m3 capacity.
3. Accessory of sewage suction factions: Equipped with PTO, transmission shaft, vacuum suction sewage pump, high pressure molding tank, moisture separator, gas-oil separation, multiple directional control valve, hanger rod, self-discharging valve, suck fecal gun and pipe network system.

Product Specification

Technical Parameters
Overview
Name	Sewage Suction Truck
Dimension(LxWxH)	9950X2490X3350(mm)
Total Mass	29005 Kg
Rated Payload	20000 Kg
Kerb Weight	9005 Kg
Passenger	3
Approach/Departure Angle	32/14
The Parameters of Chassis
Manufacture	Howo
Driving Type	6*4 left/right hand drive
Wheel Base	4300+1350 mm
Gearbox	Seven/Eight speed lever with six/seven speed forward and one reverse, manual
Front/Rear Track	1940/1860/1860(mm)
Tyre	10.00-20
The Number of Tyre	10+1(spare tyre)
Front/Rear Suspension	1245/3055,1245/3005(mm)
Leaf Spring Number	8/13,8/12
The Paremeters of Engine
Rated Power	210hp/155kw
Fuel Type	Diesel oil
Displacement/Capacity	5900ml
Emission Standard	Euro3
Cylinder	Straight/6/intercooling
Max. torque	700N.m
Velocity	2500rpm

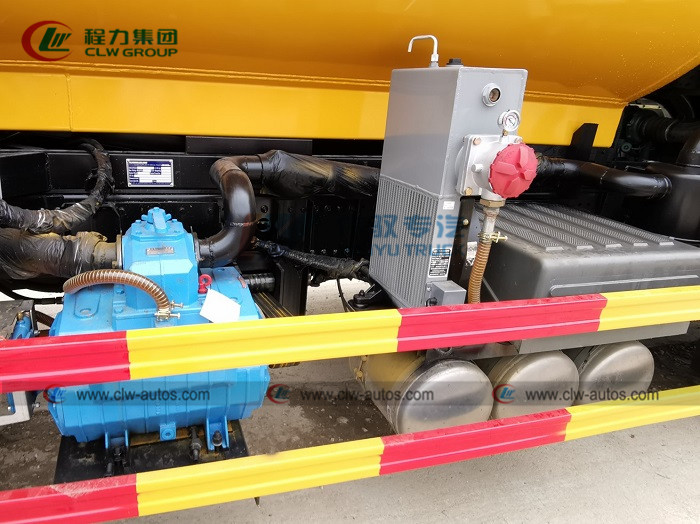

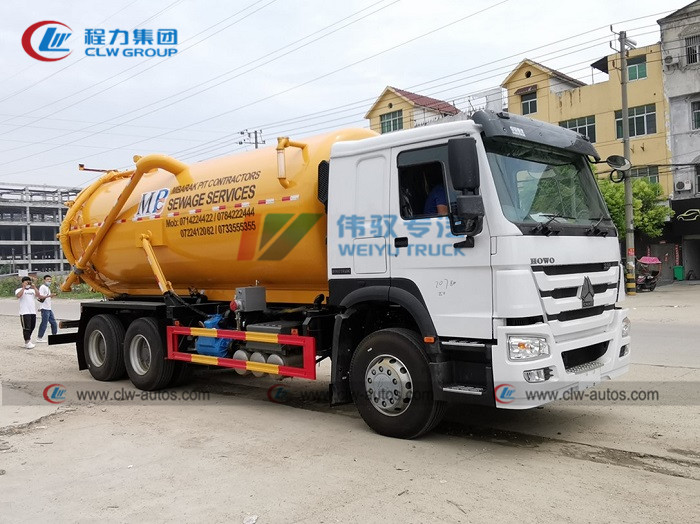

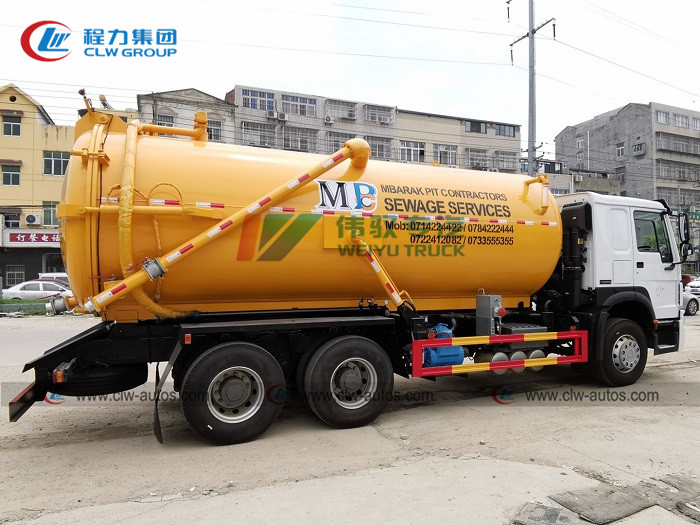

Reference Photos
Sinotruk HOWO 6x4 15cbm 16cbm 18cbm 20cbm Vacuum Sewage Suction Truck

Sinotruk HOWO 6x4 15cbm 16cbm 18cbm 20cbm Vacuum Sewage Suction Truck

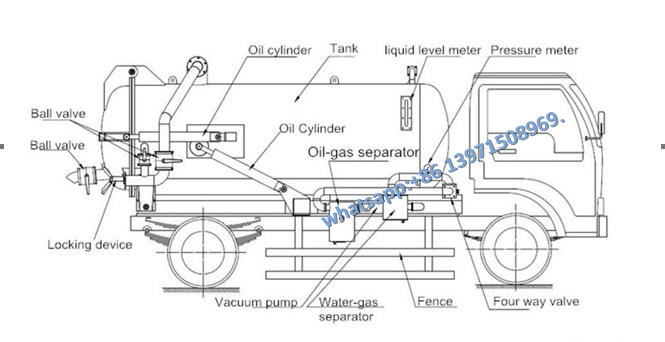

We provide package solution and customized drawding for every sewage vacuum suction truck

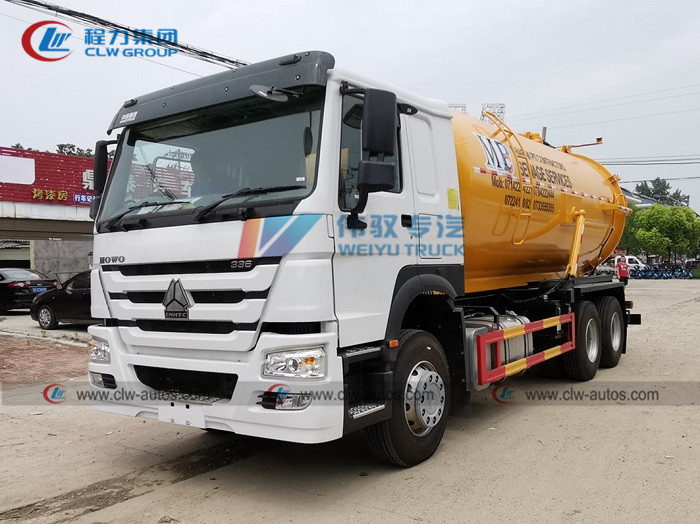

Working Scene
Sinotruk HOWO 6x4 15cbm 16cbm 18cbm 20cbm Vacuum Sewage Suction Truck

After-sales Service

1. Provide English operation manual and Instruction videos.
2. One year free warranty for major 3 components: engine, gearbox, axles; One set of easily worn spare parts of truck chassis for free; Spare parts supplied at factory price whenever needed.
3. Aftersales service whenever needed. Our engineers will go to customer's country to assist the installation and operation if order QTY.is more than 10 units. Contact Lea For More Details: +86 155 2791 1810.

FAQ

Q1: What size sewage suction tank we can get from your company?

A: we can supply 5CBM to 35CBM sewer cleaning truck as per our customer's request. Pls contact with us for more technical details discussion.

Q2: Have you supplied sewage suction truck to any overseas companies?
A: Yes, we have supplied fire trucks to African, south-east Asian, south-American and other more than 80 countries and regions.

Q3: Can we adopts International brand parts or accessories for fire truck?
A: Sure, we already cooperated with many international brand suppliers.

Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
