CCC 3 Axle 50000L Stainless Steel Tanker Semi Trailer For Asphalt Delivery

HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

CCC 3 Axle 50000L Stainless Steel Tanker Semi Trailer For Asphalt Delivery

Brand Name : CLW

Model Number : CLW5127

Certification : ISO, CCC

Place of Origin : China

MOQ : 1 UNIT

Price : negotiable

Supply Ability : 500 UNITS/MONTH

Delivery Time : 30 days after receiving deposit

Packaging Details : naked,waxed,bulk ship,ro-ro

Tank Material : Carbon steel

Tank Capacity(CBM) : 30CBM 32CBM 34CBM 40CBM 45CBM 50CBM

Loading medium : All kinds of Bitumen

Axle : FUWA/L1/Germany brand BPW

Axle quantity : 2 Axles/3 Axles

Burner : International brand Italy Riello

Thermometer : China local brand/International brand

Level gauge : Optional

Contact Now

3 Axle 50000Liters 50tons Asphalt Bitumen Transport Stainless Steel Tanker Semi Trailer

Product Description
1. Purpose: It used for transporting heated bitumen, emulsified bitumen and modified asphalt.
2. Main parts: Burner, Thermometer, Level gauge.
3. Tanker semi trailer composed of sealed tanker, climbing ladder, running gear (including axles, tires, landing gear, valve,pipeline system, heating system,etc.
4. This Tanker is applied to transport liquid
bitumen in a short or long distance. It's an ideal equipment to transport bitumen from storage field or plant to construction site and operation road,etc.
5. The trailers are made by advanced techniques from both Europe and China
6.
The key parts equipped with high quality fittings both domestic and overseas
7. Skeleton fasten by strength welding process
8. Safe and reliable driving for any bad road conditions
9. The tank
equipped with heating system and insulation layer that can keep continuous heating for bitumen and keep warm loss by insulation layer.
10. Easy maintained and
durable

Specification

STAINLESS STEEL ASPHALT/BITUMEN TANK SEMI TRAILER SPECIFICATIONS

(3 axle heating bitumen tank semi trailer)

Remark
Overall dimensions (L*W*H) 12990*2495*3995 mm Cylinder shape
GVW Approx 62550 kg
Mass in working order Approx 12550 kg
Max loading Approx 50000 kg Water load at 20ºC
Axle specification 13T×3pcs FUWA axle
Suspension system Mechanical suspension Optional air suspension
Tire specification 11.00R22.5×12pcs (tubeless tire), Optional radial tire. (11.00R20).
King pin 90 # (3.5") JOST Opting 2" 50#
Landing leg 28T load landing leg JOST
Braking system WABCO Duplex line pneumatic brake
Voltage 24V (7 lines)
BITUMEN TANK SPECIFICATION
Tank capacity 50000 L (water load at 20 °C)
Tank shape Cylinder shape
Material Mild steel Q345B
Thickness 6 mm thickness
End Enclosure 6 mm thickness Flanged flat head
Washplate 4 mm thickness
Insulated 100 mm thickness Fiber glass rock wool
Outside material Stainless steel 1 mm thickness
Flue Pipe 2 pcs
Firebox 2 pcs
Model of Burner 1 unit Optional 2 unit type.
Thermal Power of Burner 200 thousand kcal
Model of Generator 1 unit
Model of Electric Control Cabinet PLC-3
Manhole 2 units DN500 mm
Asphalt Protective Frame 800*750*150 mm With asphalt flooding pipe DN50
Thermometer 0~300
Working temperature 250 ºC
Working pressure 0.9 Bar
Painting Sand blasting before painting; two coats of primer, anti corrosion, two coats of finish painting. AS REQUIREMENT
ACCESSORIES
Mudguards PVC Mudguards
Side protection Nil.
Fire extinguishers carriers 2pcs
Guardrail of Ladder W=400 mm
Ladder Front back ladder
Spare tire carrier 2 pcs
Spare water tank optional

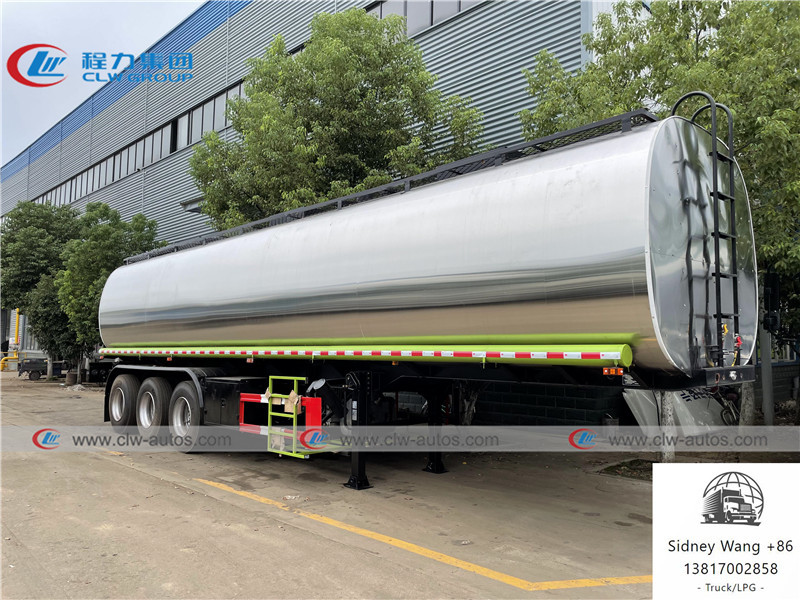

Reference photos

CCC 3 Axle 50000L Stainless Steel Tanker Semi Trailer For Asphalt DeliveryCCC 3 Axle 50000L Stainless Steel Tanker Semi Trailer For Asphalt Delivery

CCC 3 Axle 50000L Stainless Steel Tanker Semi Trailer For Asphalt DeliveryCCC 3 Axle 50000L Stainless Steel Tanker Semi Trailer For Asphalt Delivery

Factory overview

CCC 3 Axle 50000L Stainless Steel Tanker Semi Trailer For Asphalt Delivery

CCC 3 Axle 50000L Stainless Steel Tanker Semi Trailer For Asphalt Delivery

Sucessful Case
CCC 3 Axle 50000L Stainless Steel Tanker Semi Trailer For Asphalt Delivery

FAQ

Q1: What kinds of bitumen truck and trailer I can order from your company?
A: We can supply 4CBM to 35.5CBM Bitumen tank truck, and 34CBM to 50CBM Bitumen tank trailer, it's only for bitumen storage and transportation. We also can supply 4CBM to 35.5CBM Bitumen distribution truck and all kinds of Synchronous Chip Sealer. As for

Q2: Can we adopts International brand for the key parts of this kind of bitumen tank truck and trailer?
A: Sure. All key part of our bitumen tank truck and trailer all adopts Internation brand. Eg: We always adopts Italy brand Riello brand burner.

Q3: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!

Sales Service
① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.

Warranty

1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer manual, video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.

Spare Parts

1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.

Shipment

Land transportation or Ship by bulk cargo ship, container, roro ship
