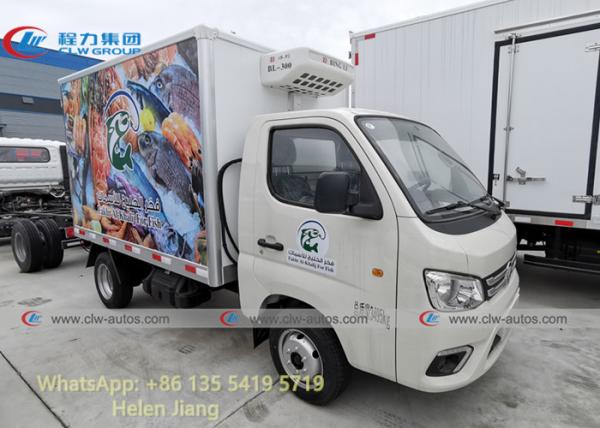

LHD 4 Wheels 2T Gasoline Engine Small Refrigerator Truck

Brand Name : CLW

Model Number : CLW20120727

Certification : ISO9001. CCC. BV, SGS

Place of Origin : SUIZHOU, HUBEI, CHINA

MOQ : 1 UNIT

Price : Negotiatable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 500 units per month

Delivery Time : 25 working days

Packaging Details : Naked or Waxed before delivery

Box Material : Fiber Glass or Stainless Steel

Optional Part : Meat Hook, Air Trunking, Side Door, Rear Platform

Material : Fiberglass Panel

Insulating Layer : 8cm Polyurethane Foam

Truck Refrigeration Unit : Thermoking, Carrier or Chinese Alternative

Applicable Temperature : -18~0

Box Type : 3 Layer Sandwich

Outside Layer : Fiber Glass

Middle Layer : 8mm PE Foam Insulation

Inner Layer : Fiber Glass or Stainless Steel

Loading Capacity : 1Tons, 2Tons, 1 tons, 2 tons, 1MT, 2MT

Engine Type : Gasoline Engine

Wheels : 4 wheels

Contact Now

China brand 4 wheels 2Tons Gasoline Engine Small Refrigerator Truck Freezer Box Truck Frozen Refrigerated Truck

Description:

1. Purpose: It used for transporting frozen fish, meat, chicken, duck, fresh vegetable and vaccinum etc.
2. Main parts: Refrigerating unit and control system.
3. Features: International chassis brand and International refrigerating unit brand for optional.

Advantages of Insulated Freezer Van body:
The advantages of Insulated/Freezer Van Body
1. It is made of GRP and PU foam with all-closed structure that the GRP (Glass Reinforced Plastic Fiber) outside
and PU foam in the core.
2. Light in weight: 40% lighter than metal body.
3. Non-corrosion, non-pollution, anti-brine, acid and soda-resisting.
4. The panel used for the truck body was constructed in type of sandwich. The thermal insulation layer is 50-80mm
thick, which offers a very good thermal insulation performance.
5. Length of Cargo body: 10-40 inch; Capacity of Cargo body: 5-70CBM. The material of the cargo body is optional
according to which kinds of goods the truck transport, with perfect heat preservation, box open model:
Rear double-open or Side-open.
6. Refrigeration unit Brand Optioanl: American CARRIER, THERMO KING. South Korea hanya. China Songhan,
hanxue, etc. The Temperature range can be 0° C ~ -20° C. The refrigeration units that we select have simple
structure, convenient operation, reliable working, low energy consumption, large refrigerating capacity, small noise,
easy installation and maintenance and other advantages.

Speicfiation:

No.	Item	Unit	Specification
1	Vehicle Name		Foton G7 2Ton 3Ton refrigerated truck
2	Drive type		4*2
3	Steering type		Left hand drive
4	Gross Weight	kg	3150
5	Payload	kg	680
6	Wheelbase	mm	3050
7	Overall Dimension	mm	532016952500
8	Van body size	mm	532016952500
9	Insulating layer thickness	cm	8
10	Van material		Fiberglass reinforced
11	Refrigerator unit brand		Thermoking or Carrier
12	Refrigeration temperature range( degree centigrade)		-18 to 0
13	Chassis Model		BJ6539B1PVA
14	Chassis Brand		Foton
15	Engine Model		4Q20M
16	Displacement / Power	ml/kw	1998/ 95KW/ 129HP
17	Emission Standard		Euro 5
18	Fuel Type		Gasoline
19	Tyre specification		195R15C

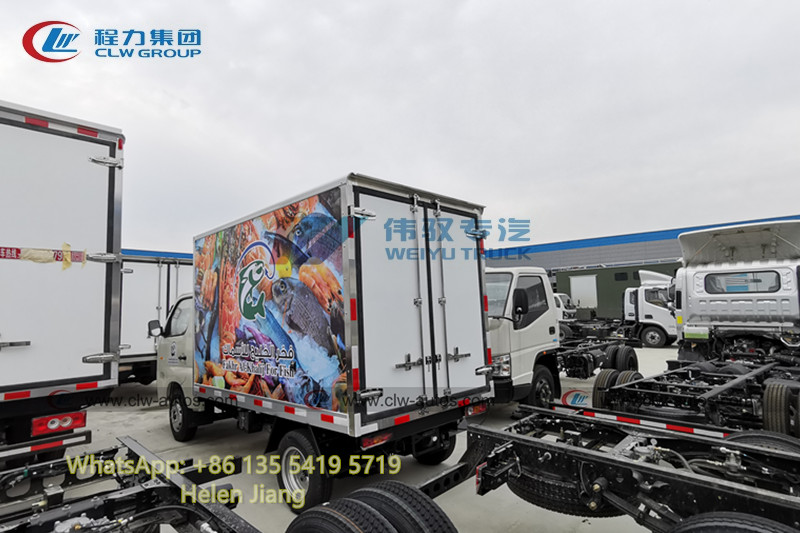

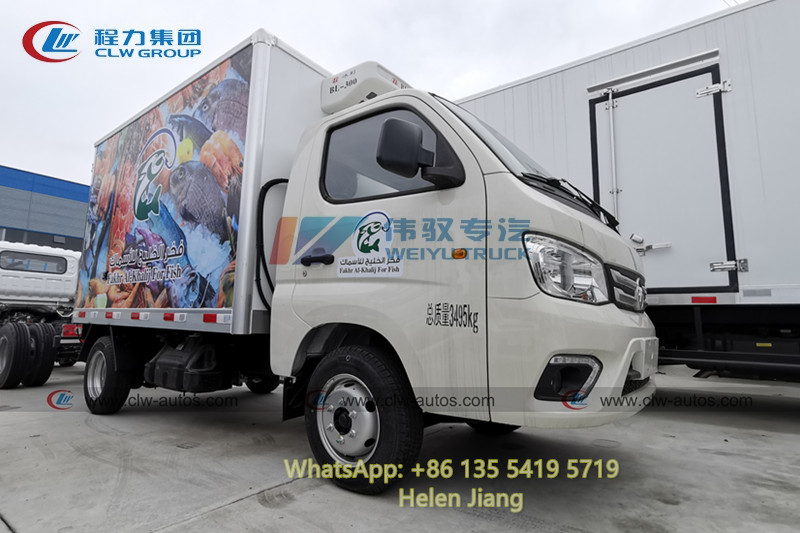

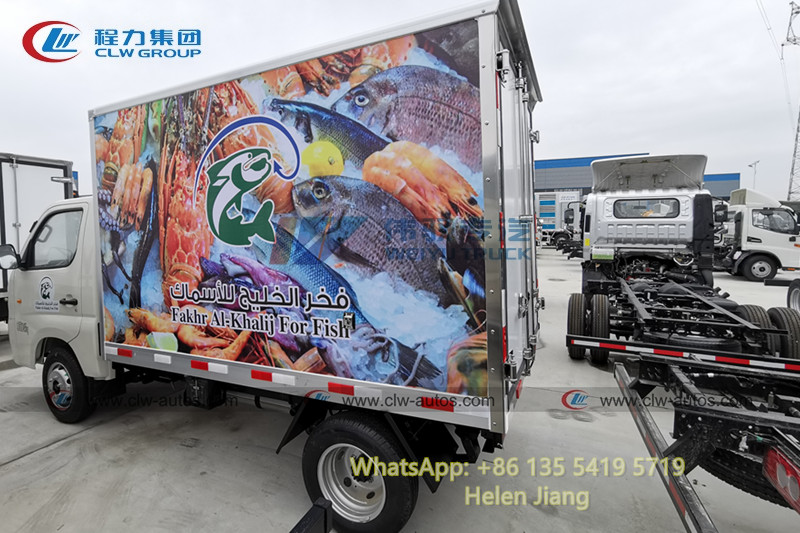

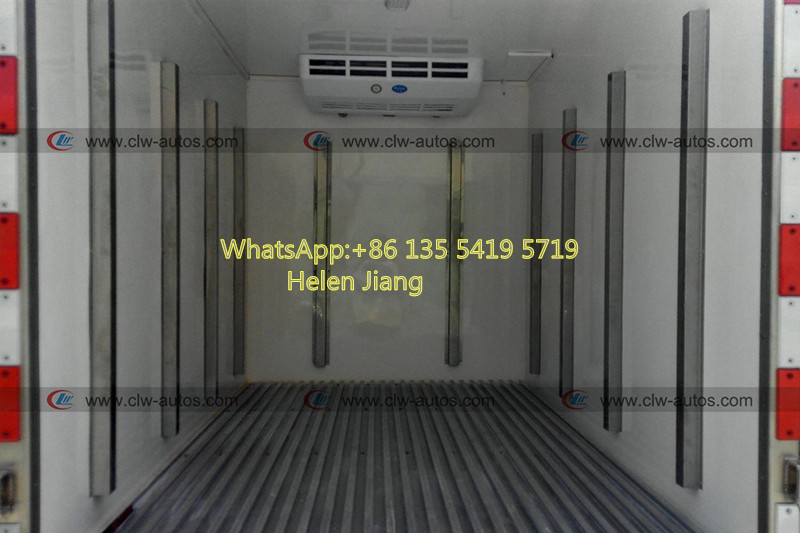

More Pictures:

FAQ:

1. How can I select correct unit?

It is important to select the proper transport refrigeration unit depend on the size of the truck and your purpose of usage. Please refer the selection guide from the technical information or please contact us by e-mail. We will help you to choose correct unit for your use.

2. Can I have a price of King Thermo units?

Every King Thermo dealer is empowered to establish his or her own pricing policies. This includes parts as well as transport refrigeration units. Please find your nearest local dealers and they will kindly provide you the best service. If you can’t find any dealers in your country, please send us inquiry by e-mail, phone or fax. Also our inquiry form on the quick menu is provided for your convenience.

3. What payments way that you accepted?

T/T, WEST UNION, L/C, Credit Card and so on...

4. How about spare parts supply and warranty term?

We will offer free wearing parts per to order quantity and provide 12 Months Warranty for your transport refrigeration unit spare parts change.

5. How to be a King Thermo distributor?

If we have a transport refrigeration unit dealer or distributor in your area, sorry it is impossible to deal with us directly. If we don't have a representative in your country, it is possible to deal with us as long as your company meet our requirement. Please contact us by inquiry on the quick menu or e-mail to us.
