HOWO 4x2 6 Wheeler Refrigerated Box Truck With Thermo King Freezer

Brand Name : CLW

Model Number : CLW20120707

Certification : ISO9001. BV, SGS

Place of Origin : SUIZHOU, HUBEI, CHINA

MOQ : 1 UNIT

Price : Negotiatable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 500 units per month

Delivery Time : 25 working days

Packaging Details : Naked or Waxed before delivery

Box Material : Fiber Glass or Stainless Steel

Optional Part : Meat Hook, Air Trunking, Side Door, Rear Platform

Material : Fiberglass Panel

Insulating Layer : 8cm Polyurethane Foam

Truck Refrigeration Unit : Thermoking, Carrier or Chinese Alternative

Applicable Temperature : -18~0

Box Type : 3 Layer Sandwich

Outside Layer : Fiber Glass

Middle Layer : 8mm PE Foam Insulation

Inner Layer : Fiber Glass or Stainless Steel

Contact Now

HOWO 4x2 6 wheels Insulated Refrigerator Truck Refrigerated Box Truck With Thermo King Freezer

Description:

1. Purpose: It used for transporting frozen fish, meat, chicken, duck, fresh vegetable and vaccinum etc.
2. Main parts: Refrigerating unit and control system.
3. Features: International chassis brand and International refrigerating unit brand for optional.

Advantages of Insulated Freezer Van body:
The advantages of Insulated/Freezer Van Body
1. It is made of GRP and PU foam with all-closed structure that the GRP (Glass Reinforced Plastic Fiber) outside
and PU foam in the core.
2. Light in weight: 40% lighter than metal body.
3. Non-corrosion, non-pollution, anti-brine, acid and soda-resisting.
4. The panel used for the truck body was constructed in type of sandwich. The thermal insulation layer is 50-80mm
thick, which offers a very good thermal insulation performance.
5. Length of Cargo body: 10-40 inch; Capacity of Cargo body: 5-70CBM. The material of the cargo body is optional
according to which kinds of goods the truck transport, with perfect heat preservation, box open model:
Rear double-open or Side-open.
6. Refrigeration unit Brand Optioanl: American CARRIER, THERMO KING. South Korea hanya. China Songhan,
hanxue, etc. The Temperature range can be 0° C ~ -20° C. The refrigeration units that we select have simple
structure, convenient operation, reliable working, low energy consumption, large refrigerating capacity, small noise,
easy installation and maintenance and other advantages.

Speicfiation:

Cabin	HW76 Standard Cab, Left hand drive, one sleeper. A/C With two bunks, 70° hydraulically tillable to the front as attached photo for ref.
Vehicle Main Dimensions	(L x W x H)mm		8600x2500x3370
	Wheel base (mm)		4600
	Wheel track (front/rear) (mm)		2022/1830
	Approach/Departure angle(°)		16/15
Weight in KGS	Tare Weight			8950
	Loading Capacity			16000
	Front axles loading capacity			HF7 1x7000
	Rear axles loading capacity			1*ST16 1x16000
Max. driving speed(km/h)					75
Engine		Brand		Sinotruk
		Model		D10.28-40
		Type		4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
		Horse Power(HP)		280HP
		Emission standard		Euro-4
Gearbox		HW13710CL, 10 Forwards gear & 2 reverse
Clutch		Reinforced diaphragm clutch, diameter 430mm
Steering Gear		ZF 8118, power steering, hydraulic steering with power assistance
Fuel tank (L)		300
Tire		12R22.5 radial steel tire 6 Pieces with one spare
Brakes		Service brake: dual circuit compressed air brake Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake
Paint		Anti-corrasive
Refrigerating System		1, Box Size: 5600×2300×1500(mm) 2, Box Material, glass epoxy in the surface, foam in the middle , thickness is 80mm 3, Working temperature is minus 18 centi degree. 4. USA ThermoKing brand Non-Independent refrigeration unit. 5, Rear door open

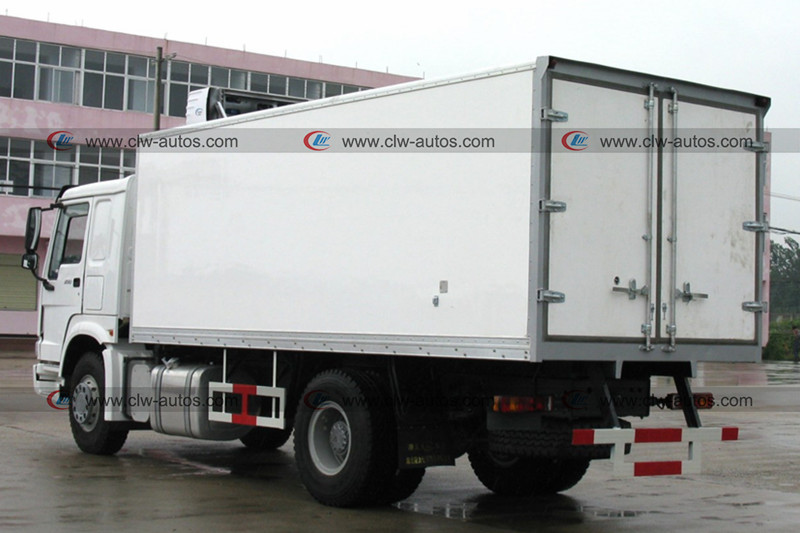

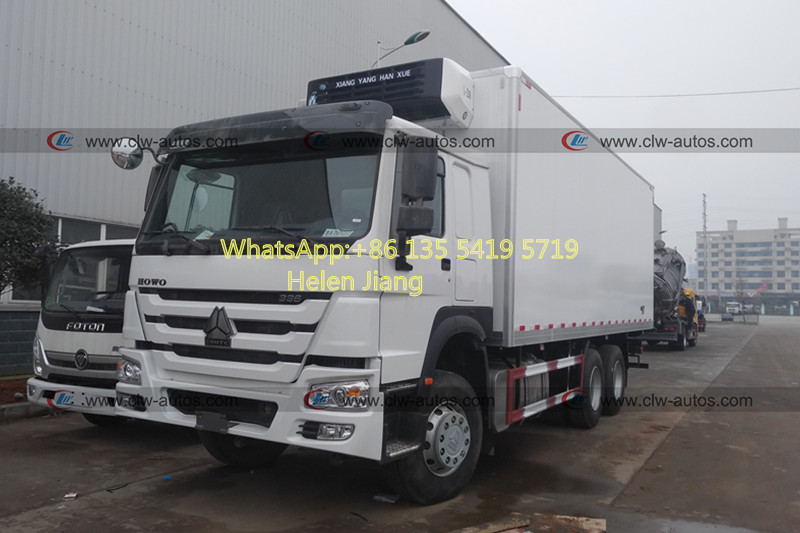

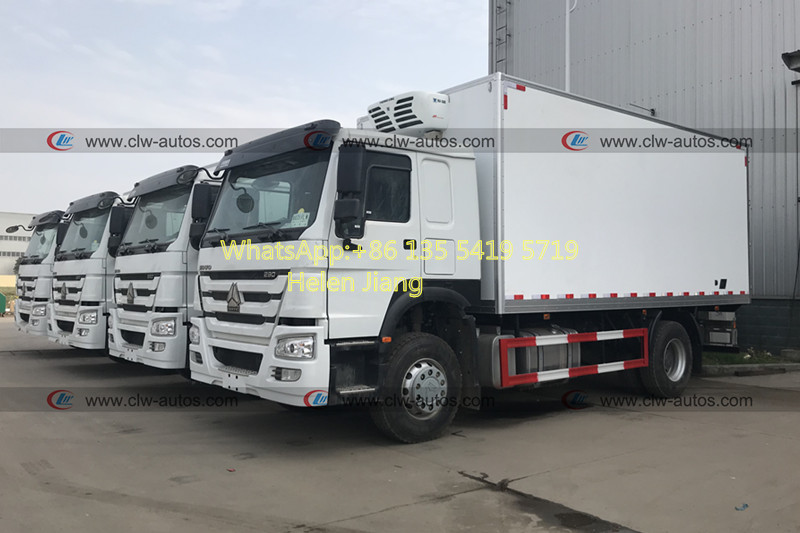

More Pictures:

FAQ:

1. How can I select correct unit?

It is important to select the proper transport refrigeration unit depend on the size of the truck and your purpose of usage. Please refer the selection guide from the technical information or please contact us by e-mail. We will help you to choose correct unit for your use.

2. Can I have a price of King Thermo units?

Every King Thermo dealer is empowered to establish his or her own pricing policies. This includes parts as well as transport refrigeration units. Please find your nearest local dealers and they will kindly provide you the best service. If you can’t find any dealers in your country, please send us inquiry by e-mail, phone or fax. Also our inquiry form on the quick menu is provided for your convenience.

3. What payments way that you accepted?

T/T, WEST UNION, L/C, Credit Card and so on...

4. How about spare parts supply and warranty term?

We will offer free wearing parts per to order quantity and provide 12 Months Warranty for your transport refrigeration unit spare parts change.

5. How to be a King Thermo distributor?

If we have a transport refrigeration unit dealer or distributor in your area, sorry it is impossible to deal with us directly. If we don't have a representative in your country, it is possible to deal with us as long as your company meet our requirement. Please contact us by inquiry on the quick menu or e-mail to us.
