DONGFENG RHD 4x2 One Carry Two Flatbed Tow Truck Wrecker Car Carrier Road Recovery For Sale
Product Description

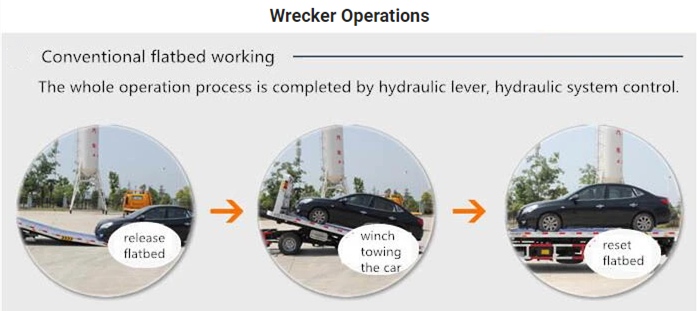

1. Function: Equipped with lifting winch device and wheel bracket which can lift, towing, back load and transport.
2. Application: Widely used in road, police traffic, airports, docks, auto repair company, industry and highway departments, timely, fast clean-up accident, failure, illegal and other vehicles.
3. Adopting foreign advanced skillful product technology and production technology, all imported hydraulic parts of seals, reinforced beam fixing, enhanced carrying capacity, more stable performance during trailer process.
4. The customers can choose to install crane.
DONGFENG RHD 4x2 One Carry Two Flatbed Tow Truck Wrecker Car Carrier Road Recovery For Sale
| General Technical Parameters |
| Overall Dimension | 7330x2350x2430 (mm) |
| Gross Vehicle Weight | 8200kg |
| Curb Weight | 4200kg |

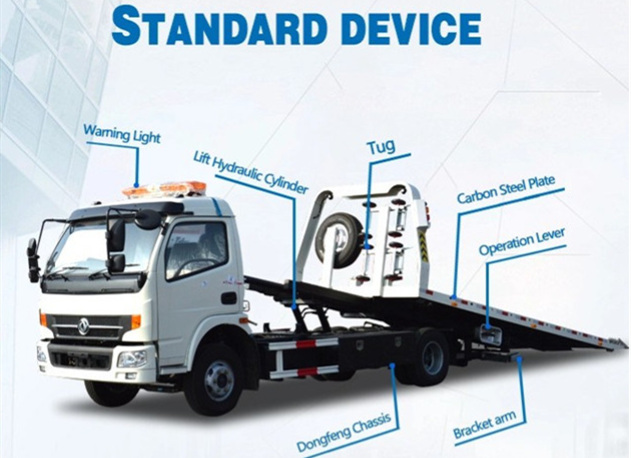

| Chassis Specification |
| Chassis Parameters | Chassis Brand | Dongfeng |
| Cabin | Single, Right Hand Driving |
| Engine | Model | CY4102BZQ, 4 Cylinders |
| Power | 88KW/120HP |
| Emission Standard | EURO II |
| Displacement | 3.856L |
| Fuel Type | Diesel |
| Gearbox | 5 Forward & 1 Reverse Gear |
| Front and Rear Axle Load | 2.5T/4.5T |
| Wheel Base | 3800(mm) |
| Overhang( Front/Rear) | 1015/2450(mm) |
| Angle(Approach/departure) | 24/9(°) |
| Brake System | Air Brake |
| Steering Gear | Power Assistant |
| Tire | 8.25 Nylon tire, 6 Pieces with 1 Spare Tire |
| Maximum Speed | 110(km/h) |
| Superstructure |
| Flatbed | Dimensions | 5600x2330 (mm) |
| Max. Loading Weight | 4000(kg) |
| Operating Stroke | 2700 (mm) |
| Min. Angle of Slope | 8(°) |
| Platform Height from the Ground | 1070(mm) |
| Winch | Quantity | 1pc |
| Winch Rating Pulling Capacity | 4000 (kg) |
| Length of Steel Cable | 21 (m) |

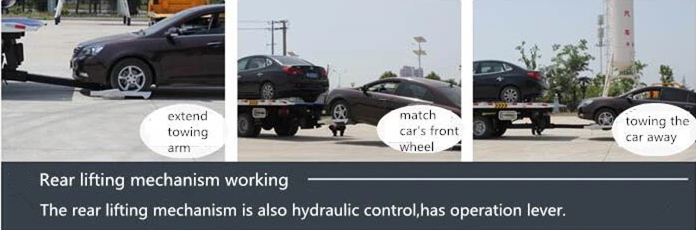

| Hoisting Organ | Rating Under-Pulling Capacity | 6000 (kg) |
| Rating Under-Hoisting Capacity | 2000 (kg) |
| Fully Extended Max Under-Hoisting Capacity | 1600 (kg) |
| Max Under-Hoist Useful Length | 1640 (mm) |
| Remarks | 1. Equiped with One Set of Auxiliary Wheels 2. Bandages 4pcs 3. Yellow Warning Lamp 1pc 4. Double Side Hydraulic Operation 5. Can Tow 2 Cars |
Our Service
-
Quick feedback to solve your questions
-
Professional engineering and production team
-
Related Accessories and spare parts offered,no future worries
-
Regular customer after-sale visiting
-
Free technical staff training and guidance
-
Reasonable price and good quality
-
Quick delivery and shipment
FAQ
Q1: What kinds of wheel-lift breakdown truck I can order from your company?
A: There are various sizes of wheel-lift breakdown truck with different functions and different capacity,you can contact us and tell your request.We will recommend you suitable product.
Q2:: Have you supplied wheel-lift breakdown truck to any overseas companies?
A: Yes,with need of towing services,we offered wrecker trucks and wrecker superstructurer to many African,south-east Asian and south-American countries.
Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
