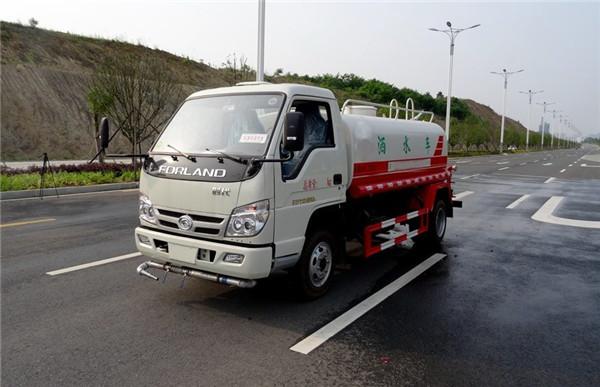

FOTON 2000 Liters 4x2 530 Gallon Q235 Carbon Steel Water Tanker Truck
Product Description
1. Optional chassis brand of portable water truck : Dongfeng, Sinotruk, FOTON/Forland, Faw, Shacaman,
2. Material of portable water truck :High Tension Steel Q235/Q345,stainless steel 304 for option.
3. Sprinking Width of portable water truck :＞14M
4. Rear working platform with water cannon range of portable water truck :28M
5. Reliable and high quality water pump
Specifications of 2,000 liters water tank truck
| Condition | New condition/Left hand drive/4x2 |
| Chassis | Brand | Foton |
| Curb weight(kg) | 2600 kg |
| Loading weight(kg) | 1495 kg |
| Gross weight(kg) | 4290 kg |
| Wheelbase(mm) | 2480 mm |
| Dimensions(mm) | 4995*1980*2300 mm |
| Front Loading Capacity (Ton) | 1.8 |
| Rear Loading Capacity (Ton) | 3 |
| Max. driving speed(km/h) | 90 km/h |
| Clutch | Reinforced diaphragm clutch |
| Brakes | Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels |
| Auxiliary brake: engine exhaust valve brake |
| Steering Gear | Power steering, hydraulic steering with power assistance |
| Tire | Quantity | 6 pcs with one spare tire |
| Specifications | 6.00-15 |
| Transmission | Manual type,5 Forwards and 1 reverse |
| Cabin | Single row seat, Tiltable. It can accommodate two people. With air conditioner. |
| Engine | Brand | Quanchai |
| Fuel type | Diesel |
| Power(kw) | 50 kw |
| Horsepower(HP) | 68 HP |
| Cylinder number | 4 |
| Emission standard | Euro 2 |
| Upper |
| Water tank | Capacity(cbm/tons) | 2 |
| Tank Dimension(mm) | 2500*1310*810 |
| Tank material | Q235 carbon steel |
| Thickness(mm) | 4 |
| Water pump | China local brand |
| Suction Height | 7M |
| Function | 1, Front Side Rear Sprinkling width≥ 14m |
| 2, Water cannon range≥ 28m |
| Remarks | 1. AM/FM radio |
| 2. 2pcs water hose. |
| 3. Color is optional |
Water Truck Diagram
Working Show
Truck Details
Sales Service
①Pre-sales Service: Communicate with customers, analyze their needs.
②Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What kinds of water bowser I can order from your company?
A: There are various sizes and types of water bowsers with different functions,you can contact us and tell your request.We will recommend you suitable product.
Q2:Have you supplied water bowsers to any overseas companies?
A: Yes,with need of government and construction project,we offered water bowsers to many Africa and south-east Asian,south-American countries.
Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory is based in Suizhou city, Hubei province, China. Our overseas marketing office is in Wuhan city,Hubei Province.Wuhan is about two hours' plane and four hours' high speed train from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
