Isuzu LHD 18m 20m 22m Aerial Work Platform Truck

Brand Name : CLW

Model Number : CLW5120er

Certification : CCC,ISO,SGS,BV

Place of Origin : Suizhou,China

MOQ : 1

Price : negotiable

Payment Terms : D/A, D/P, Western Union, MoneyGram

Supply Ability : 600Unit Per Month

Delivery Time : 30 days

Packaging Details : Naked Pack with Wax

Brand : ISUZU,Dongfeng,JAC,JMC,forland,foton

Engine : ISUZU brand

front leg : H shape

Rear leg : H type

Height : 18Meters,20meters, 22meter, 18M,20M,22M

Bucket Capacity : 200kg

Passenger : 2~3 Person

Wheelbase : 4500/3950

Arm term : Telescopic type

User manual : yes

Warranty : 1 year

Logo : as per customer's request

Contact Now

Japan Brand Isuzu Left Hand Driving18m 20m 22m Man Lift Aerial Platform Working Truck

Product Description

Automatic Bucket Balance System, Bucket will be Stayed in Balance Level in All Working Time.
The Stretching Angle Up to 80°, which will be Easier to Handle in All Time.
Full Computer Control System with Danger Waring System.
LCD Screen in Both the Bucket and Truck to Display the Working Status.
Rectangular Shape Arms to Increase the Arm Strength.
V Shape Leg, H Shape Leg can Adapted to Different Road Condition Increasing the Stability.

Parameter	Overall dimension (Lengthwidthhigh)	(mm)	9500×2500×31500
	Total Mass	(kg)	8500
	Kerb Mass	(kg)	8050
	Wheel base	(mm)	4175
	Front/rear tract base	(mm)	1385/1425
	Approach/rear angle		27/11
	Max speed	(km/h)	95
	Fuel type		diesel
Engine	Engine type		ISUZU
Engine	Displacement standard		EURO 4
Chassis	Chassis type		isuzu
	Drive system		4x2
	Tire type		8.25-16
	Number of tire		6
	Front/rear axle loading(kg)		1015/2025
	passengers		2+3
	Cabin		Single, with 2 passengers allowed, with Air conditioner
Special parameter	Working platform rating loading	(kg)	200
	Working Height	(m)	22
	Max working radius	(m)	9.67
	Boom type		three section knuckle arm
	Max hook height	(m)	9.9
	Loading of hook	(kg)	800-1000
	Max rotation angle	(°)	360

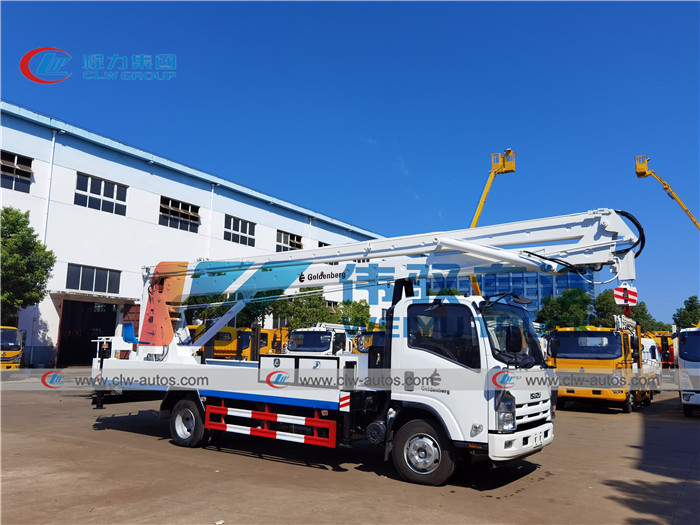

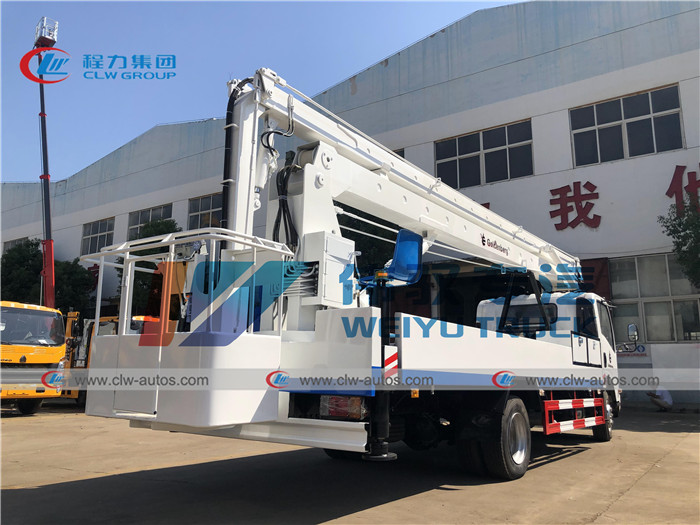

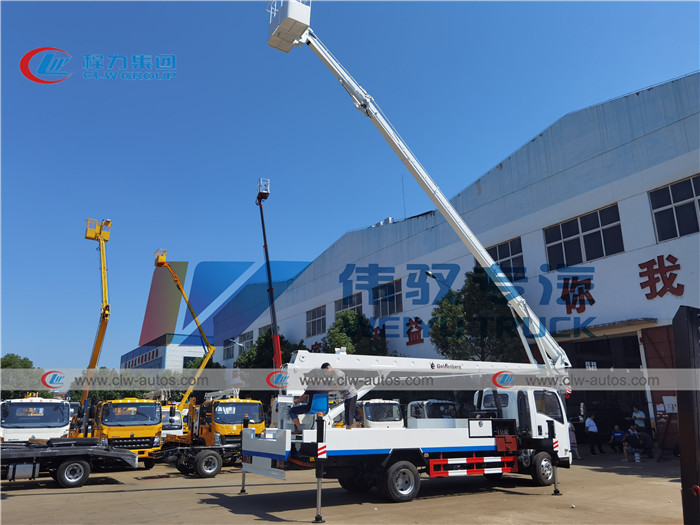

Reference photos

Isuzu LHD 18m 20m 22m Aerial Work Platform Truck

Diagram for aerial platform truck

Isuzu LHD 18m 20m 22m Aerial Work Platform Truck
