12Ton 12000L Chemcial Liquid Tank FAW Ammonia Water Delivery Truck
Description
Ammonia Liquid:
known as Ammonia water, can be written as NH3(aq), which is an aqueous solution of ammonia, colorless, transparent and has a pungent odor.
Industrial ammonia is an aqueous solution containing 25% to 28% of ammonia. Only a small part of ammonia molecules react with water to form ammonia monohydrate, which is a weak base that exists only in ammonia.
Main Purpose:
Used as agricultural fertilizer. In the chemical industry, it is used to produce various ammonium salts, aminating agents for organic synthesis, and a catalyst for the production of thermosetting phenolic resins. In the textile industry, it is used in wool spinning, silk, printing and dyeing industries, for washing wool, woolen cloth, grey cloth, oil stains, dyeing aids, and pH adjustment. Also used in pharmacy, tannery, thermos flask (preparation of silver plating solution), alkalization of rubber and grease.
10m3 Ammonia Delivery Truck
Design Standard: Chinese Standards GB18564
Tank Material: Q235 carbon steel, tank body 4.3mm, head 5.3mm
Inner Tank: 16mm thick with polyethylene. Plastic-lined double partition structure.

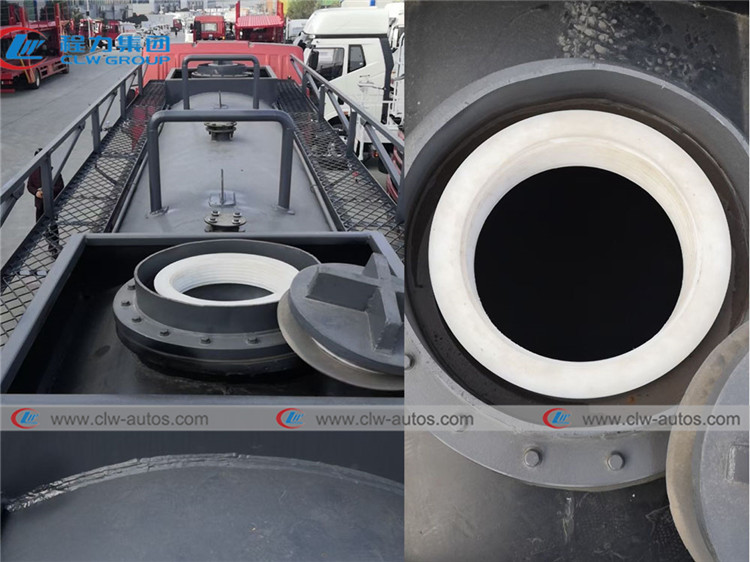

Manhole: 2 all-plastic manhole, 2 plastic breathing valves, with a circular acid tray,

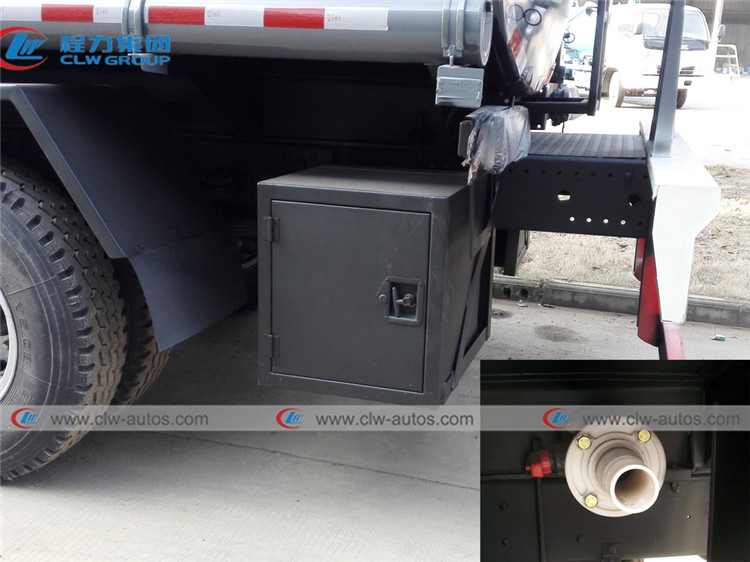

Bottom Valve: DN100 stainless steel lined tetrafluoroethylene with emergency switch rear control. Pipe: Plastic-lined 3-way pipes, 1 Unit DN80 plastic ball valve with plastic inside.
Other Parts: reflective strips, reflective tapes, safety signs, 2 PVC gun barrels, inner lining 4-inch acid tray, 2 fire extinguishers, 1 movable ladder behind the tank.
Tank Color: Anti-corrosion paint, and 3 corrosive labels.
Specification
| Main Specification |
| Overall Size: | 9000×2500×3250(mm) | | |
| GVW: | 16000(Kg) | Tare Weight: | 7805(Kg) |
| Loading Weight: | 8000(Kg) | Cabin Allow: | 3 person |
| Approach/Departure Angle: | 25.5/13(°) | Front /Rear Overhang | 1445/2455(mm) |
| Axle Loading: | 6000/10000 | Wheel Base: | 5100,4700,4500,(mm) |
| Axle Qty: | 2 | Speed: | 80(km/h) |
| Fuel Consumption: | 27.11, | Leaf Spring: | 11/12+9 |
| Tire: | 6 | Tire Size: | 11R22.5,275/80R22.5 |
| Front Tracking: | 1940,1830 | Rear Tracking: | 1860 |
| Engine |
| Model | Brand | Displacement (ml) | Power (kw) |
YC6J180-42
YC6J200-42 | Guangxi Yuchai
Guangxi Yuchai | 6500
6500 | 132
147 |
| Vehicle Type |
| Type: | Diesel | | |
| Emssion Standard: | GB17691-2005,GB3847-2005 |
| Other |
| Medium: Ammonia Density: 800 kg/m3 Tank Capacity: 10.5 m3 |

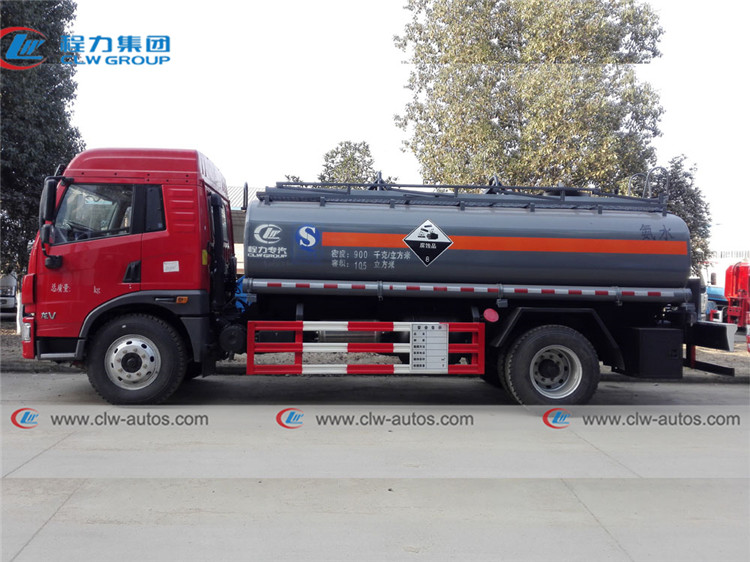

Reference Photos

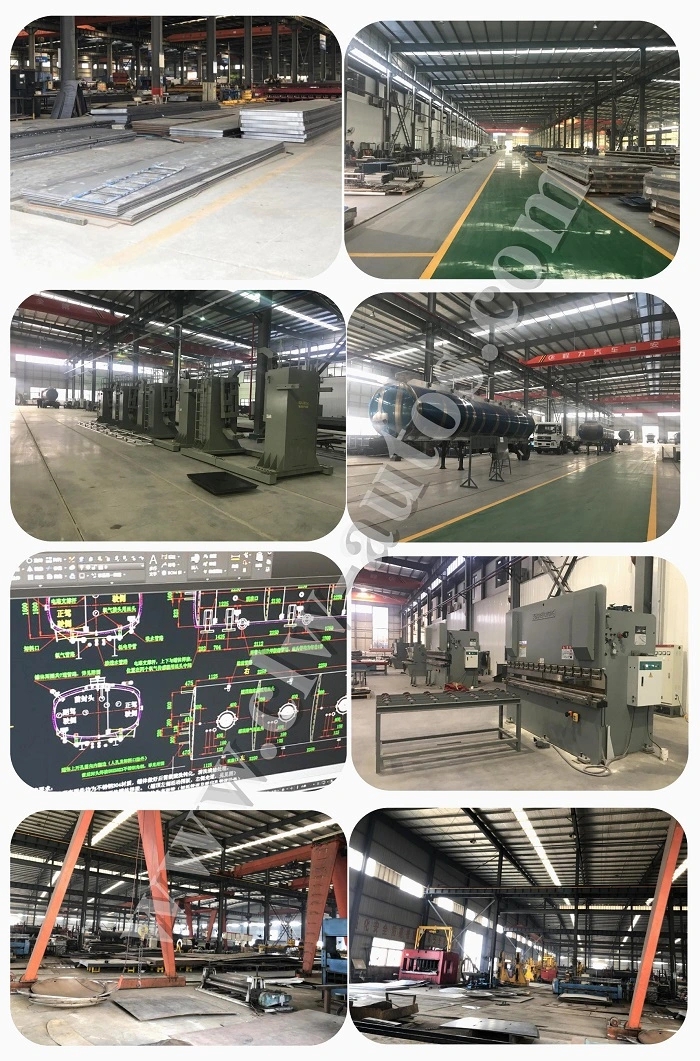

Our Workshop of Chemical liquid tank truck & trailer
Sales Service
① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What kinds of chemcial liquid tank truck I can order from your company?
A: We can supply different size chemcial liquid tank truck as client's request. Basically speaking, we can supply 5CBM to 20CBM type. Pls contact with us for more technical details and discussion.
Q2: What is your production standard of chemcial liquid tank Truck products?
A: China GB local standard.
Q3: Can we adopts International brand fuel pump for chemcial liquid tank Truck ?
A: Sure, we already cooperated with many international brand supplier.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to Wuhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
