Brand Name : CLW
Model Number : CLW5160WYXFC
Certification : CCC,SGS,BV
Place of Origin : SUIZHOU,CHINA
MOQ : 1 Unit
Price : 78560~11650 usd/unit
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 300 units/month
Delivery Time : 30 days after receiving deposit
Packaging Details : naked,waxed,bulk ship,ro-ro
Truck Chassis : ISUZU GIGA Fire Rescue Truck
Capacity : 6tons 6t Fire Rescue Truck
Type : water tank,foam,dry powder Fire Rescue Truck
Fire Pump : CB10/60 Fire Rescue Truck
Flow rate of pump : 48- 64L/S Fire Rescue Truck
Steering : LHD Fire Rescue Truck
Engine type : Diesel engine Fire Rescue Truck
Horsepower : 240HP Fire Rescue Truck
Water Tanker Size : 4000liters 4m3 Water Fire Rescue Truck
Foam Tank Size : 2m3 2cbm 2000L foam Fire Rescue Truck
Country : Myanmar,Cambodia,Philippines..
Japan ISUZU FVR 240HP 6Tons 6,000L 1500 Gallons Water Foam Fire Rescue Truck
Product Description

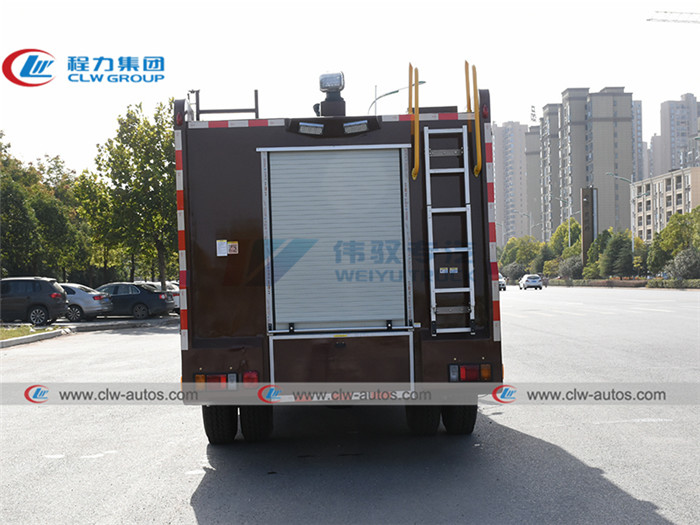

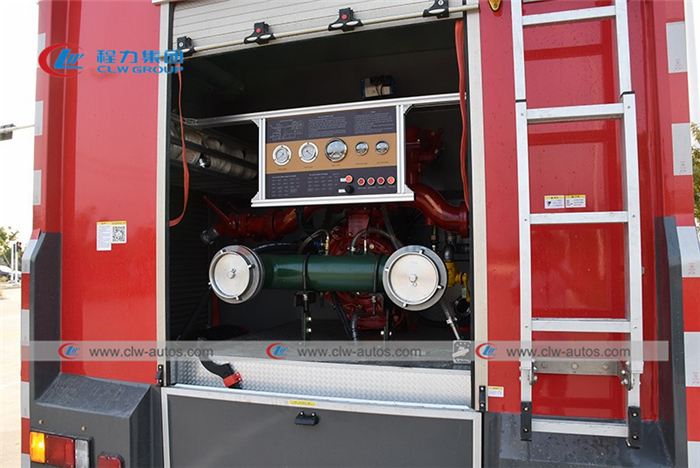

The Isuzu FVR fire rescue truck is composed of a second-class isuzu chassis, tank body, water pump, pipeline, instrument circuit system and other components. The isuzu fire rescue truck is equipped with aluminum alloy rear ladder (removable), the pump room is at the rear of the vehicle and the tank body is made of steel plate. Welding type, carrying water 2 square, foam 1 square, the water tank is made of high-quality carbon steel plate, the inside of the tank is treated with anti-corrosion, and the foam tank is made of 304 stainless steel. The vehicle is equipped with CB10/60 fire pump and PL48/64 dual-purpose fire monitor.
Specifications of ISUZU FVR fire rescue truck
Model | Parameters | others |
Overall Dimension | 8160×2500×3460 | |
GVW | 15560kg | |
Engine Model | 6HK1-TCNG40 | |
Engine Power | 177kW | |
Wheelbase | 4500mm | |
Driving Type | 4X2 | |
Max.speed | 90km/h | |
Emission Standard | 7790 ml | Euro4 |
Passengers | 1+1+4 | |
Fire pump rated flow | 60L/s@1.0Mpa; | Vacuum pump |
water monitor rated flow | 48-64L/s | Adjustable |
Water monitor range | Water range≥60m,foam≥55m | |
Approach angle | ≥16° | |
Departure angle | ≥23° |
Item Parameters | Parameters | others | |||||
1 | Water tank capacity | water | 4000㎏ | Built-in type | |||
Foam tank capacity | foam | 2000㎏ | |||||

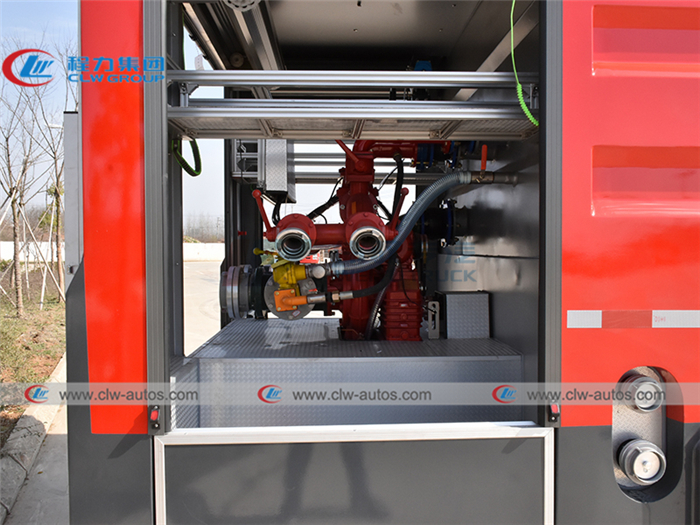

2 | Fire pump model | CB10/60 | Shanghai rongshen | ||||
3 | Fire pump performance | condition | Pressure1:1.0Mpa flow:60L/S | Use vacuum pump to priming water | |||
4 | the installation site of fire pump | rear | |||||
5 | The quantity of fire pump water outlet | 4 | |||||
6 | Pressure gauge | 0-1.6 Mpa, | 2.6 level | ||||
7 | Vacuum gauge | -0.1- -1 MPa | 2.6 level | ||||
8
| Water monitor (PL48-64YZ) | water | Flow: 48- 64L/S
| Range:60m | Shandong zhangqiu | ||
foam | Range:55m | ||||||
Depression/Elevation angle | -30-+70° | ||||||
Turning angle 360° | |||||||
9 | PTO Model | YTQ590K type full power sandwich , pneumatic |
Quick feedback to solve your questions
Professional engineering and production team

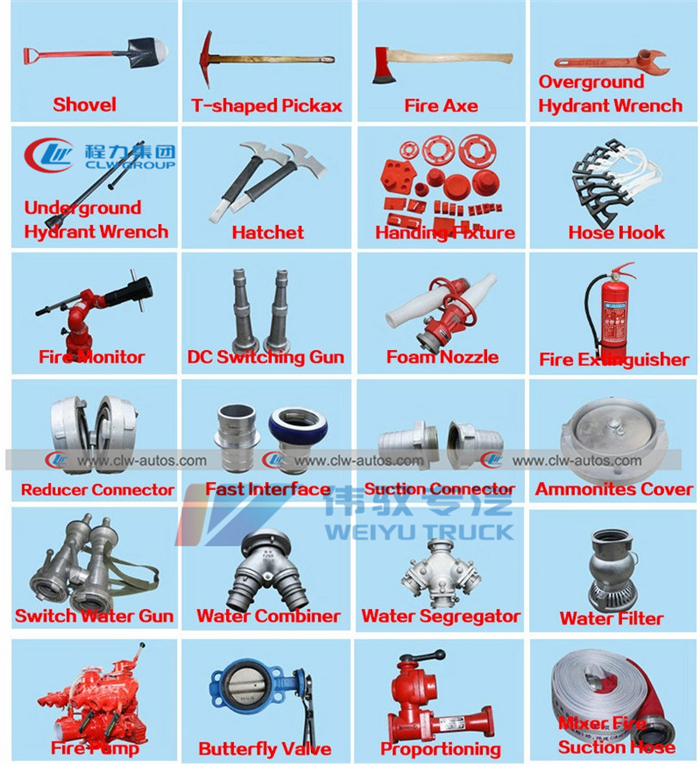

Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment
FAQ
Q1: What kinds of fire fighting truck I can order from your company?
A: There are various sizes and types of fire fighting trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.
Q2:: Have you supplied fire fighting trucks to any overseas companies?
A: Yes,with need of government project,we offered fire fighting trucks to many Africa and south-east Asian,south-American countries.
Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory is based in Suizhou city, Hubei province, China. Our overseas marketing office is in Wuhan city,Hubei Province.Wuhan is about two hours' plane and four hours' high speed train from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.

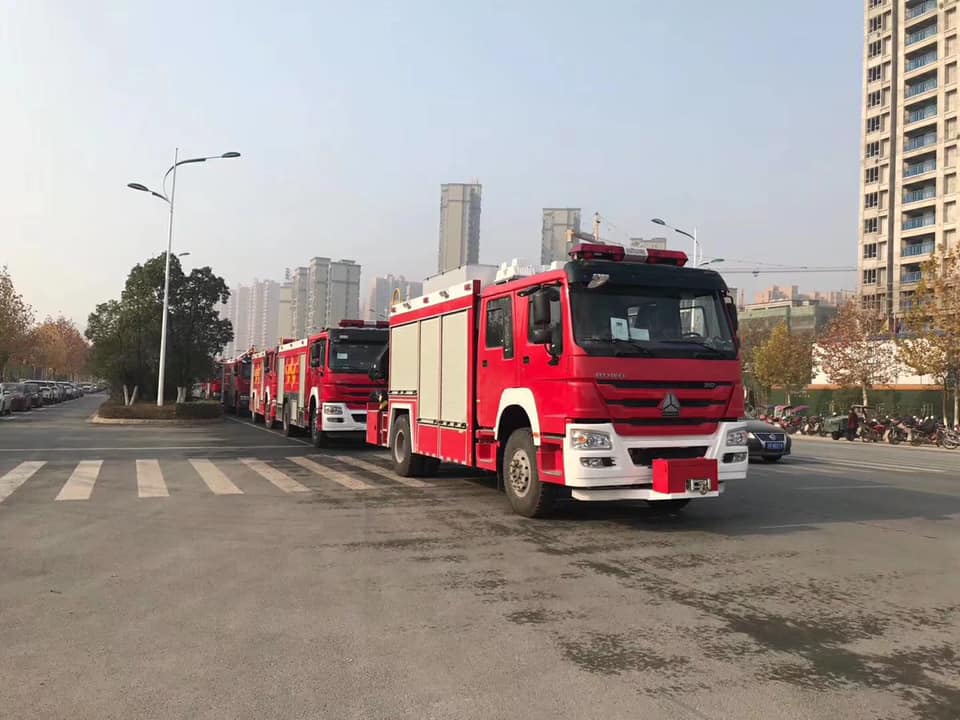

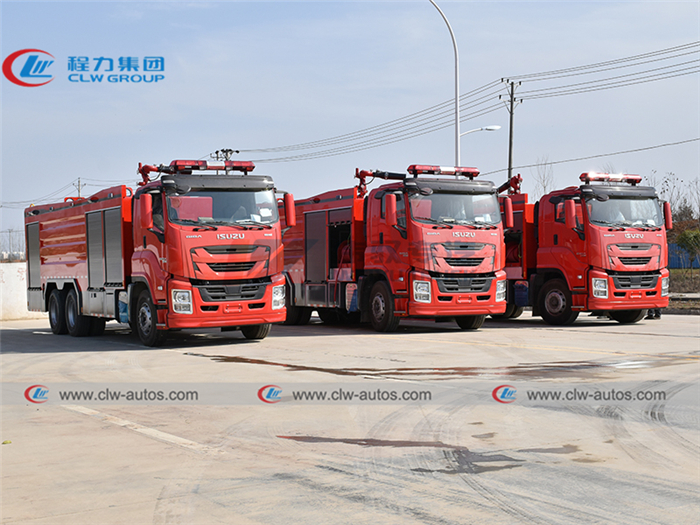

Successful case
![]() |

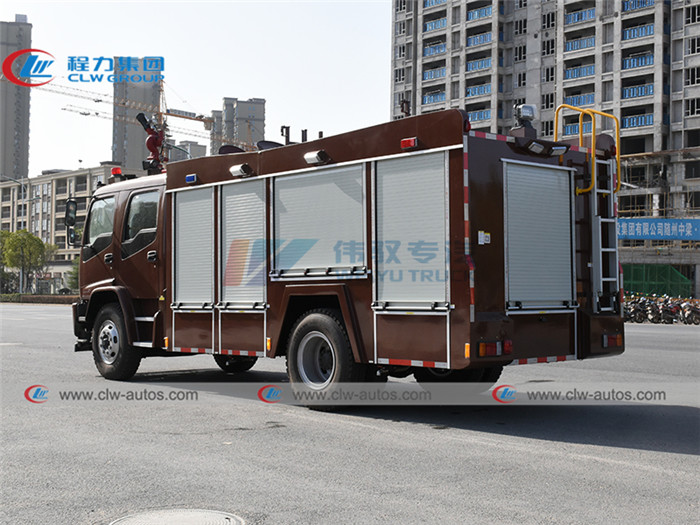

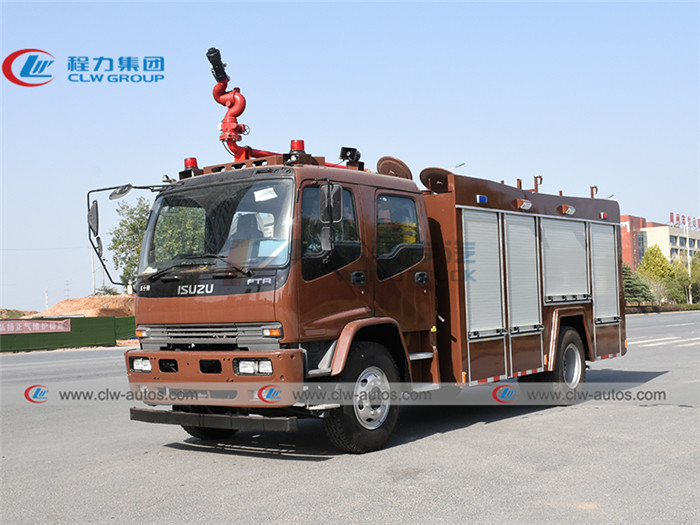

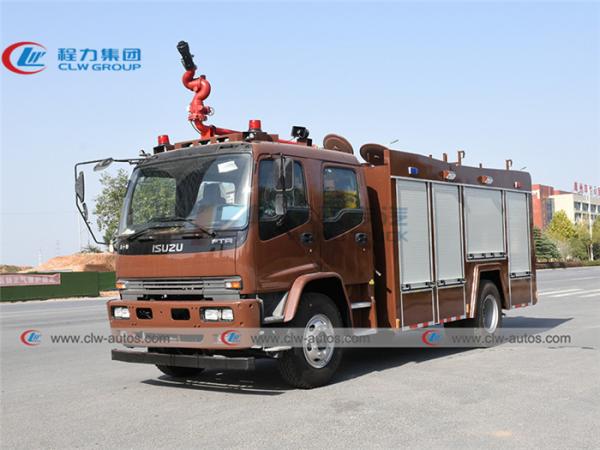

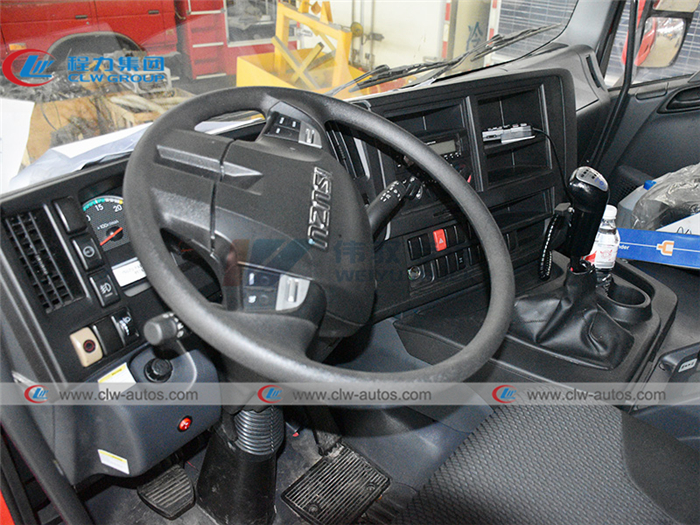

ISUZU FVR 240HP 6000L Water Foam Fire Rescue Truck Images |
