SINOTRUK HOWO 14m High Altitude Truck For Aerial Working

Brand Name : CLW

Model Number : CLW5129OC

Certification : CCC,ISO,SGS,BV

Place of Origin : Suizhou,China

MOQ : 1

Price : negotiable

Payment Terms : T/T, L/C, Western Union

Supply Ability : 600Unit Per Month

Delivery Time : 30 days

Packaging Details : Naked Pack with Wax

Brand : SINOTRUK HOWO,Dongfeng,JAC,SHACMAN,JMC,JAC

Cabin : HOWO Cabin, with air conditioner

Engine : Yunnei/yuchai Chinese Top Brand

Max working height : 14 meters, 14m

Boom Type : five section telescopic arm

Bucket Capacity : 200kg-220kg, 2 workers allowed

Warranty : 1 year

Logo : as per customer's request

User manual : yes

Operation video : yes

Truck purpose : Street Light repair,Aircraft overhaul

Contact Now

SINOTRUK HOWO 14m Aerial Platform High Altitude Working Truck

Product Description
1.This aerial bucket truck has been widely used for aerial field such as electricity,street lamp, municipal administration,gardens,communication,airport, shipbuilding, transportation, advertisement and photography.
2.It can easily solve the difficulty of aerial working,makes things easy and efficient. And for this platform truck,we have several models,like straight arm,folding arm scissor lift and vertical lift,you can chose the most suitable one according to your real situation and requirement.

Specification for 14m High-Altitude Working Truck

Parameter	Overall dimension (Lengthwidthhigh)	(mm)	5998×2050×2850
	Total Mass	(kg)	4495
	Kerb Mass	(kg)	4295
	Wheel base	(mm)	3360
	Front/rear tract base	(mm)	1385/1425
	Approach/rear angle		27/11
	Max speed	(km/h)	90
	Fuel type		diesel
Engine	Engine type		Yunnei
Engine	Displacement standard		EURO 3
Chassis	Chassis type		JMC
	Drive system		4x2
	Tire type		7.00R16
	Number of tire		6
	Front/rear axle loading(kg)		1015/2025
	passengers		3
	Cabin		Single, with 2 passengers allowed, with Air conditioner
Special parameter	Working platform rating loading	(kg)	200
	Max. Working Height	(m)	21
	Platform height	(m)	19.3
	Boom type		Five section telescopic type
	Loading of hook	(kg)	800-1000
	Bucket rotation angle	(°)	360

SINOTRUK HOWO 14m High Altitude Truck For Aerial Working

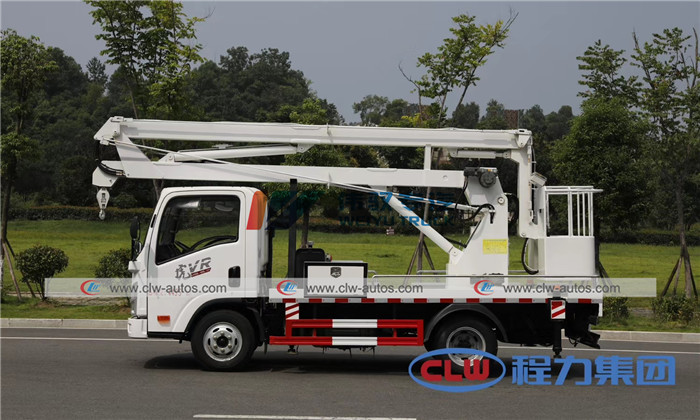

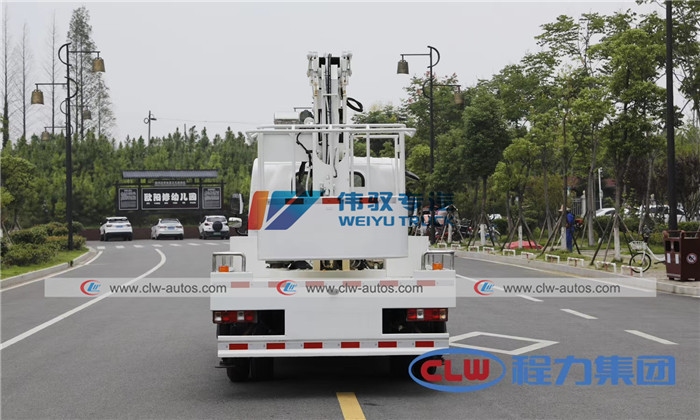

Reference photos

SINOTRUK HOWO 14m High Altitude Truck For Aerial Working

Aerial working platform Truck Working Show

SINOTRUK HOWO 14m High Altitude Truck For Aerial Working

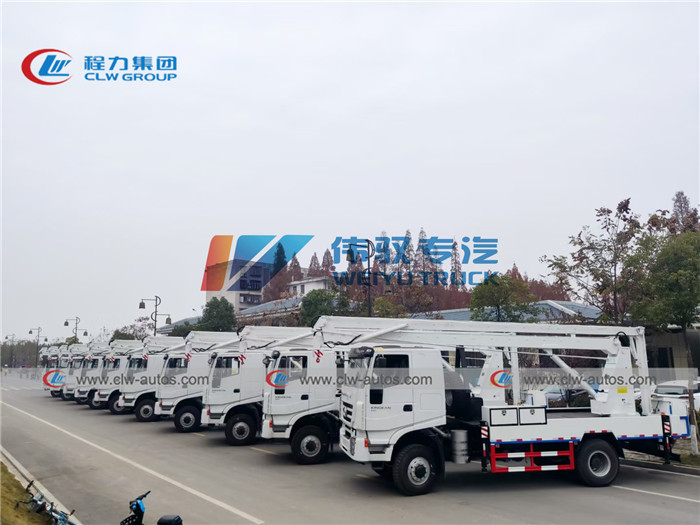

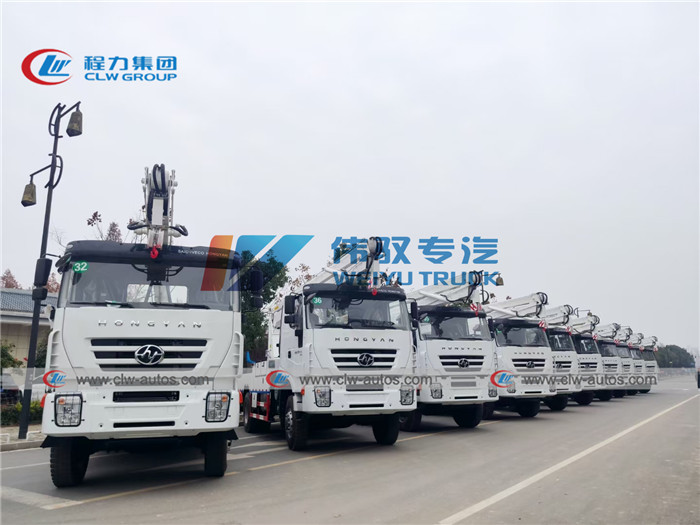

Bulk Shipment For Aerail working Platform Truck

SINOTRUK HOWO 14m High Altitude Truck For Aerial Working

For more details contact alice +86 180 7154 2196
